The premium quality 90mm high beam LED headlights have the best-in-class output and performance. They are built to OEM grade specifications and feature plug-and-play legal compliance. When placed in a custom bezel, these headlight modules can create a completely styled headlight.

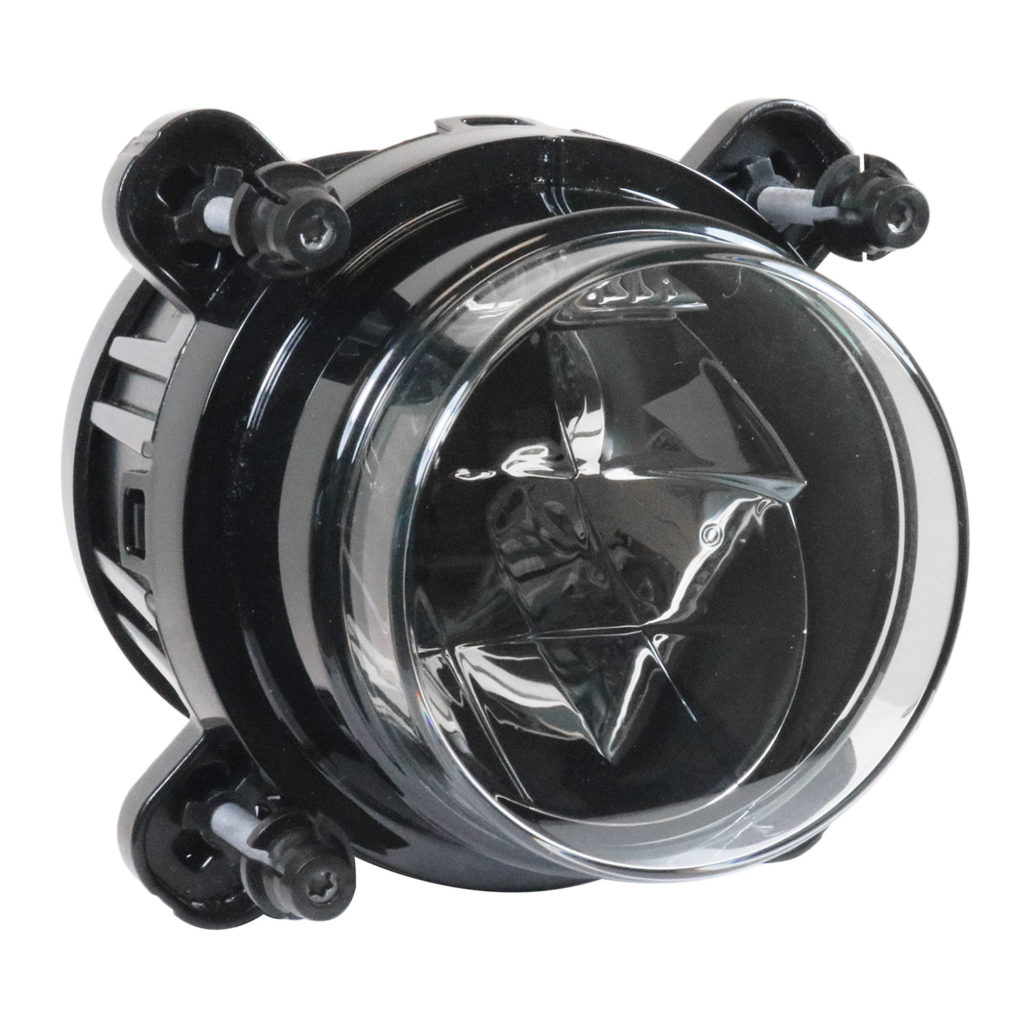

Hamsar 90MM High Beam LED Headlight Module
Price:
Quick Links: Features / Benefits | Product Specifications | SKUs / Accessories |
Features / Benefits
- Plug and play legal compliance
- Placed in a custom bezel, a module can create a completely styled headlight
- Best-in-class output and performance
- OEM grade specifications
- Reflector-style high beam
- Functional in both 12V & 24V environments
- ECE & SAE compliant variants
- ECE-R10 compliant
- Common LH and RH mounting features
Product Specifications
- Operating Voltage 12 – 24Vdc
- Operating Current 2600mA @ 12Vdc - 650mA @ 24Vdc
- Power Consumption 22W
- Temperature Range -40°C to +80°C
- Color Temperature 5700K
- Source Lumen Output 1400lm to 1700lm
- Transient Susceptibility -450V (negative transient) 150V (positive transient)
- Electrostatic Discharge ± 15kV (on surfaces that are exposed during normal operation including service)
- Electrostatic Discharge (Unpowered) ± 8kV (unpowered, all surfaces)
- Weight 24.6oz (697g)
- Compliance ECE and SAE
SKUs / Accessories
76866 - LED High Beam - 90mm - ECE SAE - 12 - 24 Vdc
