The compact 90mm low beam LED headlights have a total internal reflector which improves driver’s visibility. They are designed for hassle-free installation with a “drop-in” design that easily replaces standard 90mm headlight systems without any need for retooling.

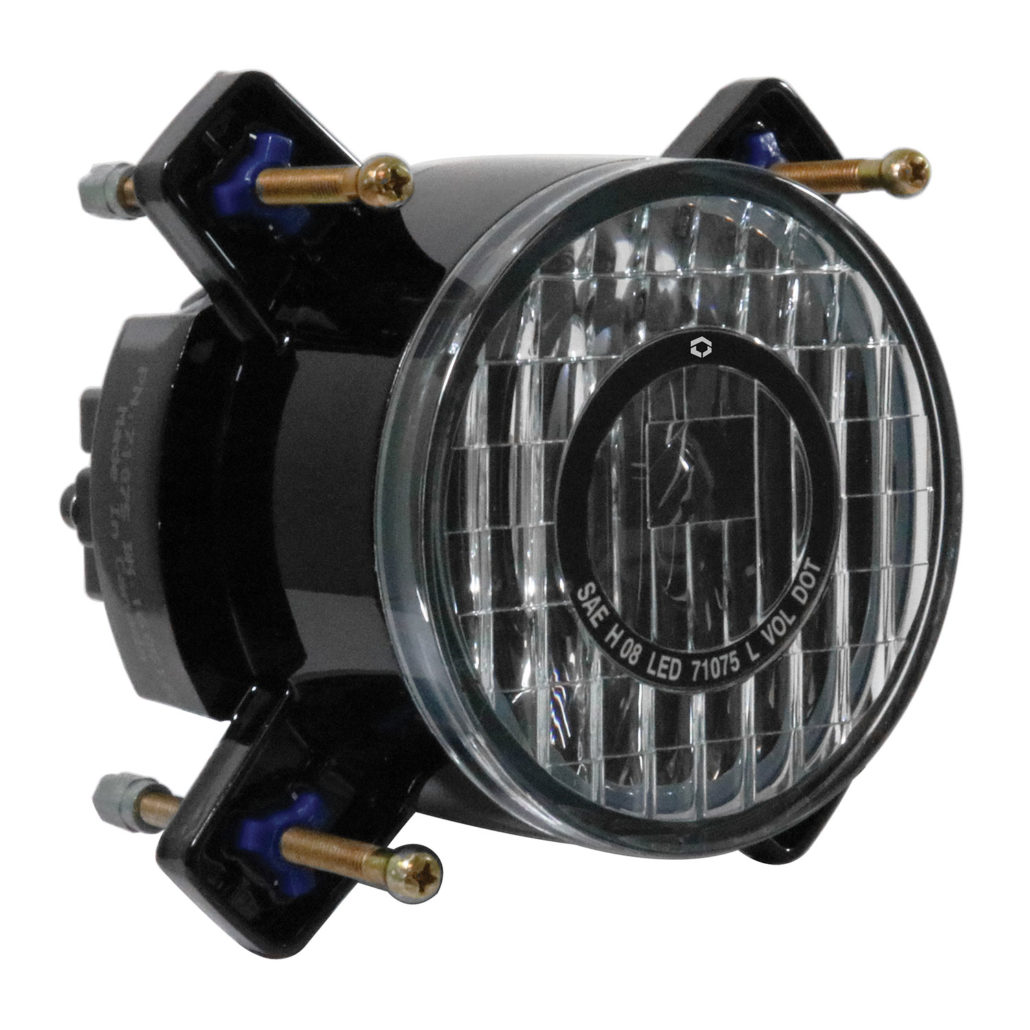

Hamsar 90MM Low Beam LED Compact Headlight Module
Price:
Quick Links: Features / Benefits | Product Specifications | SKUs / Accessories |
Features / Benefits
- Bright, white light – enhances illumination and reduces driver fatigue
- Total internal reflector – improves driver’s visibility, enhancing safety
- IP68 & IP69K – will withstand dust, dirt and sand, and is resistant to submersion up to a maximum depth of 1.5m underwater for up to thirty minutes
- Extremely low current draw – energy efficient, save on fuel costs as it consumes less energy (13W)
- Constant current circuit draw – light does not dim even if voltage fluctuates
- Hassle-free installation – “drop-in” design easily replaces standard 90mm headlight systems without any need for retooling
- SAE / DOT compliant – compliant to US / CDN federal regulations
- 50,000+ hours LED service life & 3 year warranty
Product Specifications
- Operating Voltage 12 – 24Vdc
- Operating Current 1.1A @ 12Vdc 0.5A @ 24Vdc
- Power Consumption 13W
- Temperature Range -40°C to +65°C
- Ingress Protection IP68 & IP69K
- Weight 2.0lbs (0.9kg)
- Housing Die Cast Aluminum – Black E-Coat Black Polycarbonate
- Lens Automotive Optical Grade Hard-Coated Polycarbonate
- Connection 3 Position Connector
- Polarity Reverse Voltage Protected
- Vibration Resistance 10-500Hz @ 5Grms
- Compliance FMVSS108 and CMVSS108
- EMC Rated EMC EN 13309: 2010
SKUs / Accessories
71075 - LED Low Beam - 90mm - 12 - 24 Vdc
98135 - Accessories - Adjustment Bolts
