Heated lens to help prevent snow and ice build-up. LED snow plow lights with heated lens and low/high beam, parking, turn light, side marker and corner low beam. The RE7107S1S-3 plow lights position and turn signal are also heated. Unique corner low beam technology with 180° daylight low beam allowing for illumination without dark corners. No flickering issues or radio interference. Highest level of EMC, CISPR 25 Class 5, reverse polarity protection and an anti-vibration level of 15.3 Grms.

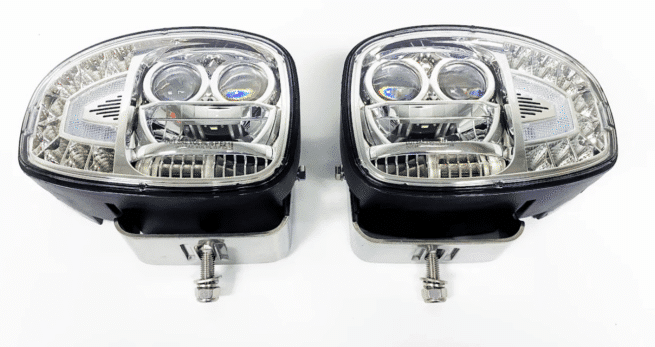

LED Snow Plow Lights with Heated Lens
Price:
Buy This Product Now
Buy Now on
Quick Links: Features / Benefits | Product Specifications | SKUs / Accessories |
Features / Benefits
- Heated lens to help prevent snow & ice build-up
- Dedicated LED high/low beam, parking and turn signal, side marker, corner low beam
- Pre-wired and easy to install when replacing your current snow plow lights
- Aluminum alloy housing
- The RE7107S1S-3 snow plow lights position and turn signal are also heated
- Unique corner low beam technology with 180° daylight low beam allowing for illumination without dark corners
- No flickering issues or radio interference|Highest level of EMC, CISPR 25 Class 5
- Reverse polarity protection
- Anti-vibration level of 15.3 Grms
Product Specifications
- Operating Voltage 10 to 30Vdc
- Operating Current Current Draw @ 12V (tested): Low Beam 2.5A, High Beam 1.75A, Corner Low Beam 0.92A, Turn Signal 0.17A, Parking Light 0.04A
- Power Consumption Low Beam 30W, High Beam 21W, Corner Low Beam 11W, Turn Signal 2W, Parking 0.5W
- Temperature Range -40°F to +50°F
- Ingress Protection IP66 & IP69K
- Color Temperature 5700K
- Weight 10lbs
- Housing Aluminum alloy
- Lens Anti-UV PC + Hardening Process
- Connection 6 pin Deutsch connector
- Vibration Resistance 15.3G
- Compliance DOT FMVSS108/SAE J914/SAE J588/SAE J222/ECE R112, R6, R7, R10
- Size 230x164x116mm
SKUs / Accessories
RE7107S1S-3
