This addressable smart system is a true RGB(W) controller providing fades, chasing modes, and a virtually unlimited color palette. With the functionality to independently control two standard RGB(W) zones of lighting and two addressable zones, the intuitive system and easy visuals make controlling the lights functional and fun.
VersiControl™ Addressable RGB(W) Smart System
Price:
Quick Links: Features / Benefits | Product Specifications | SKUs / Accessories |
Features / Benefits
- True RGB/RGBW controller for a virtually unlimited color palette along with standard fades and chasing modes.
- Available with J1939 or NMEA 2K Network.
- The addressable system can be used as a stand alone product or integrated into the digital dash via a CAN Bus system or NMEA 2K network.
- The system allows the user to independently control two standard RGB(W) zones of lighting and two addressable zones.
- Addressable zones are powered externally and use a digital signal which draws very little current .
- Intuitive operation and easy visuals make controlling the lights functional and fun.

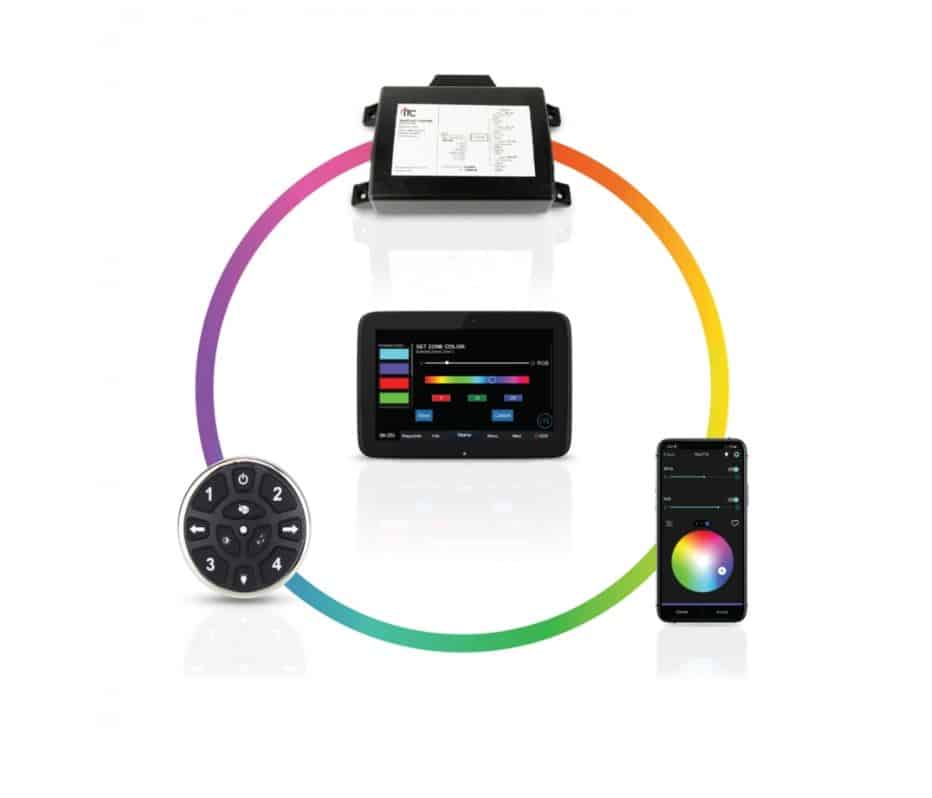

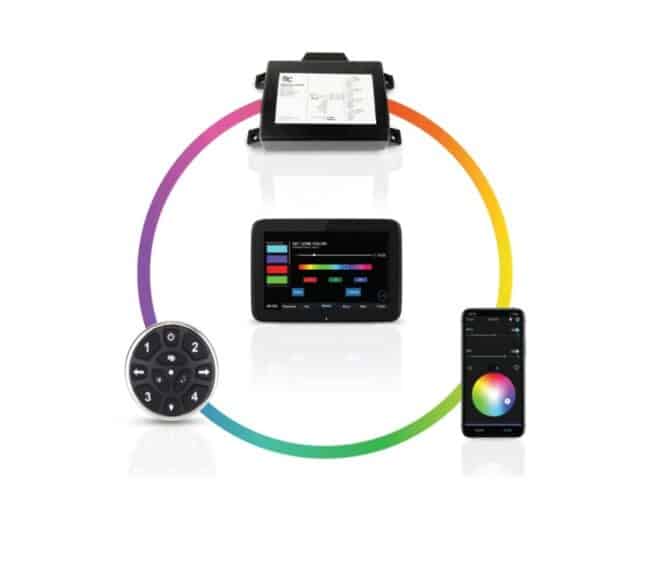

- The pad controller allows for adjustment of the color, brightness or standard color fades and chasing modes on each zone, while the app or MFD provides even more control and customization features.
Product Specifications

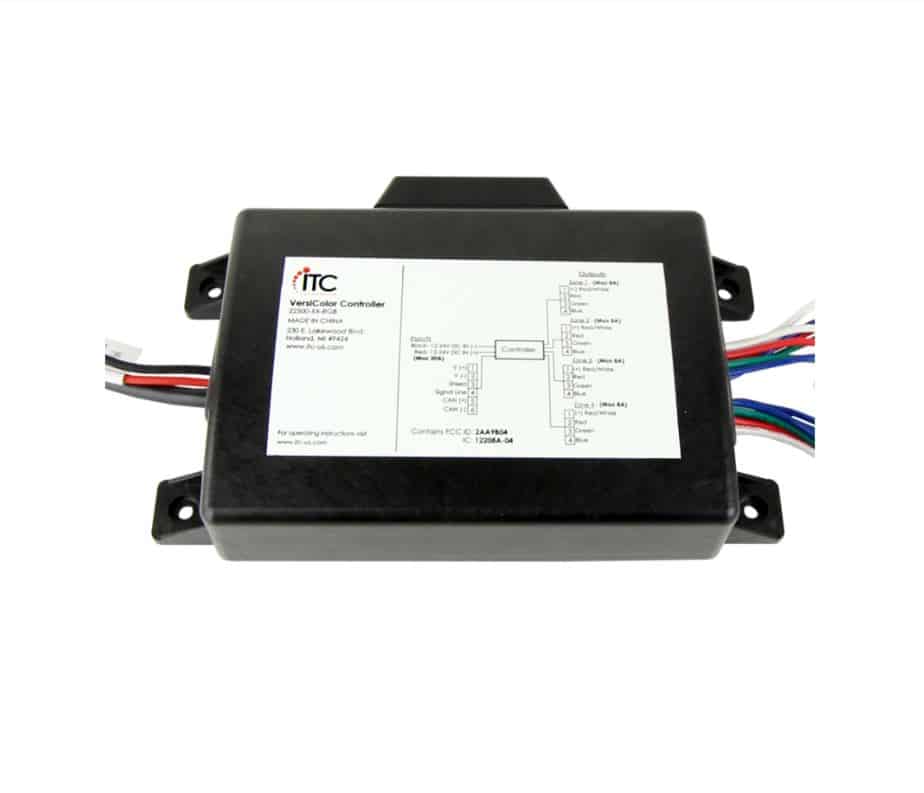

- Housing Material Specs Controller - Steel Reinforced Plastic, Pad Controller - Plastic, 11-18V DC
- Current Specs Controller - 16A Max 8A per zone, Max 2.65A per channel, Pad Controller - 0.5A Max
- Remote Distance Specs Controller - 100 FT, Pad Controller - N/A
- Bluetooth Version Controller - Bluetooth 4.0 BLE (Operating system: IOS 10.0/Android 5.0 or greater) or 2.65A per channel, Pad Controller - N/A
- IP Rating IP66
- UV Stable Yes
- Operating Temperature -20°C - 50°C
SKUs / Accessories
2251A
