The XTL-810 series work lights feature enhanced bezel styling with added lens protection, and deliver 1260 lumens of illumination. These lights are built to withstand tough working environments and feature two attachment points, also known as the “2 Lives in 1” mount system. If one attachment point fails due to a collision, rotate to the next channel point and re-mount the light. One of the most versatile work lights on the market.
Hamsar XTL-810 Series Compact Work Light - 6 LED
Price:
Quick Links: Features / Benefits | Product Specifications | SKUs / Accessories |
Features / Benefits
- 1500 lumens
- Die cast aluminum housing, polycarbonate lens and high impact bezel – virtually unbreakable
- IP68 & IP69K – will withstand dust, dirt, salt spray, and is resistant to water submersion for up to 30 minutes
- Low noise constant current design - for EMI sensitive applications
- Improved thermal performance - uses A380 grade aluminum
- 4 beam patterns – get light where it’s needed for the job
- 50,000+ hours LED service life and 5 year warranty
Product Specifications
- Raw Lumens 1770
- Effective Lumens 1500
- Color Temperature 6500 K
- Operating Voltage 12 – 24Vdc
- Operating Current 1.2A @ 12Vdc | 0.6A @ 24Vdc
- Power Consumption 14W
- Temperature Range -40°C to +80°C
- Ingress Protection IP68 & IP69K
- Weight 1.3lbs (0.6kg)
- Housing Die Cast Aluminum Alloy A380 | Black E-Coat
- Lens Automotive Optical GradeHard-Coated Polycarbonate
- Connection 6” Wire
- Polarity Reverse Voltage Protected
- Vibration Resistance 10-500Hz @ 5Grms
- Mounting C-Bracket (Powder Coated Steel) or Swivel Bracket (Zinc Dichromate Plating)
- EMC Rated EMC EN 13309: 2010
SKUs / Accessories
81871/B - Black Bezel - Spot - 1260 Lumens - 12 - 24 Vdc
81873/B - Black Bezel - Medium Flood - 1260 Lumens - 12 - 24 Vdc

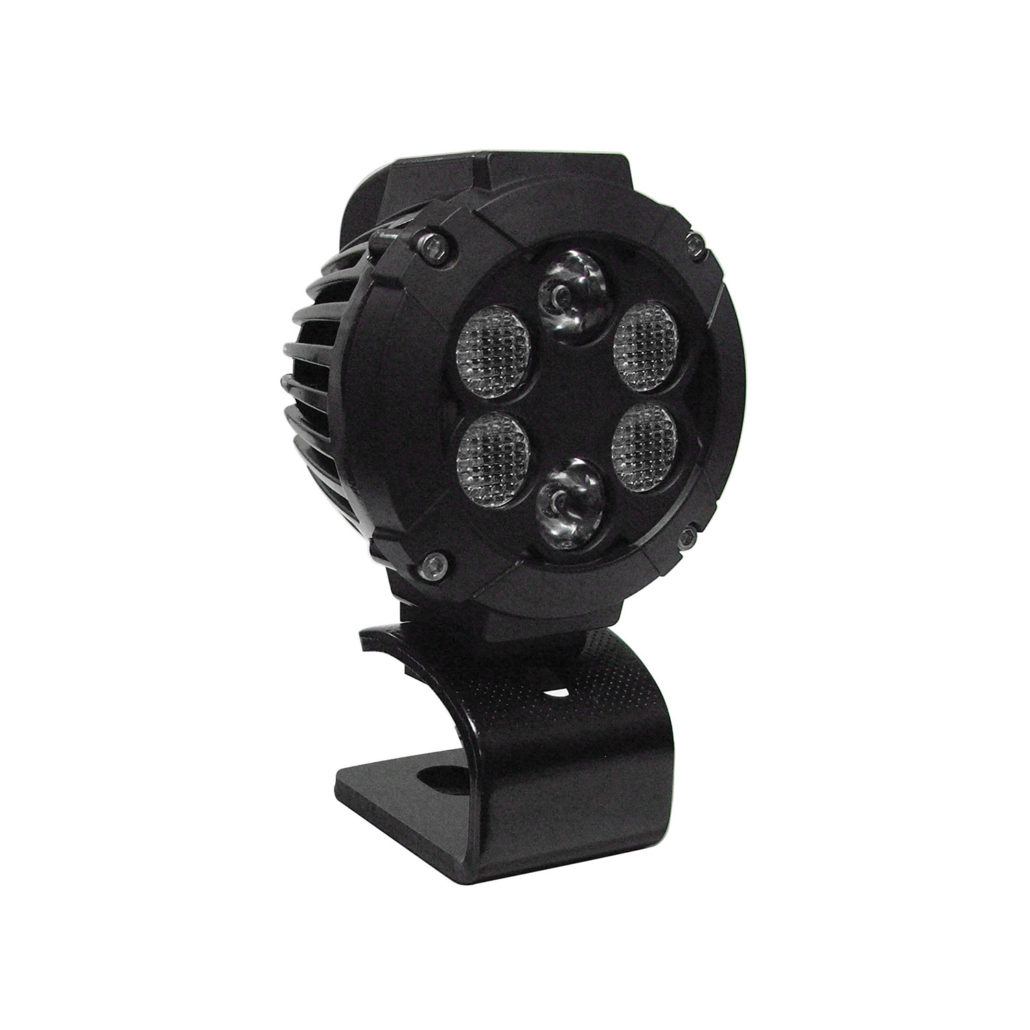

81874/B - Black Bezel - Hybrid - 1260 Lumens - 12 - 24 Vdc
81875/B - Swivel Bracket - Spot - 1260 Lumens - 12 - 24 Vdc

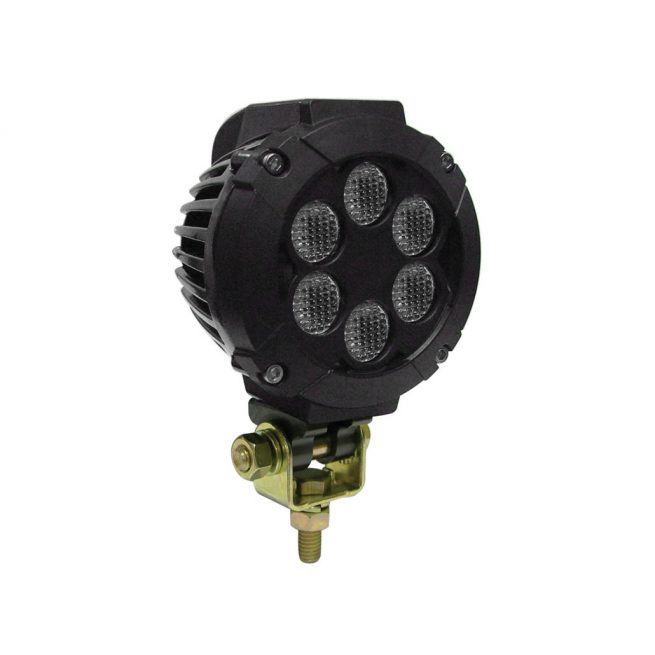

81877/B - Swivel Bracket - Medium Flood - 1260 Lumens - 12 - 24 Vdc
81878/B - Swivel Bracket - Hybrid - 1260 Lumens - 12 - 24 Vdc

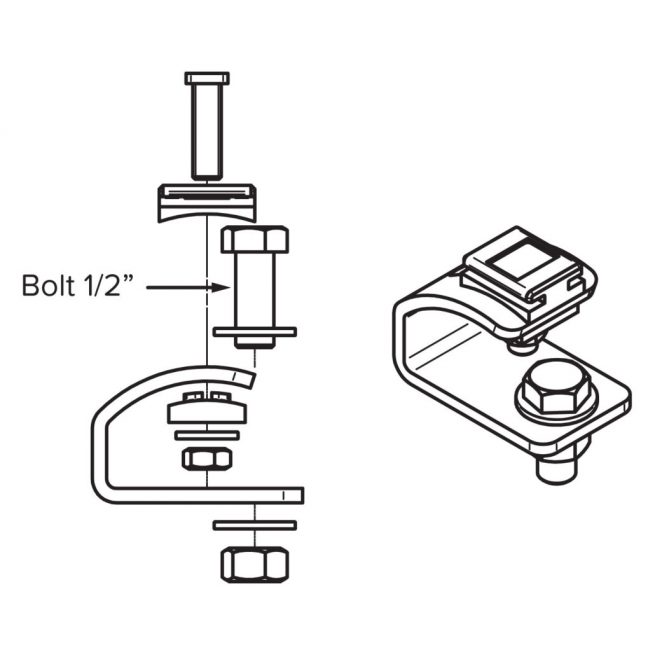

HW02A - Accessories - Hardware Kit/C-Bracket
