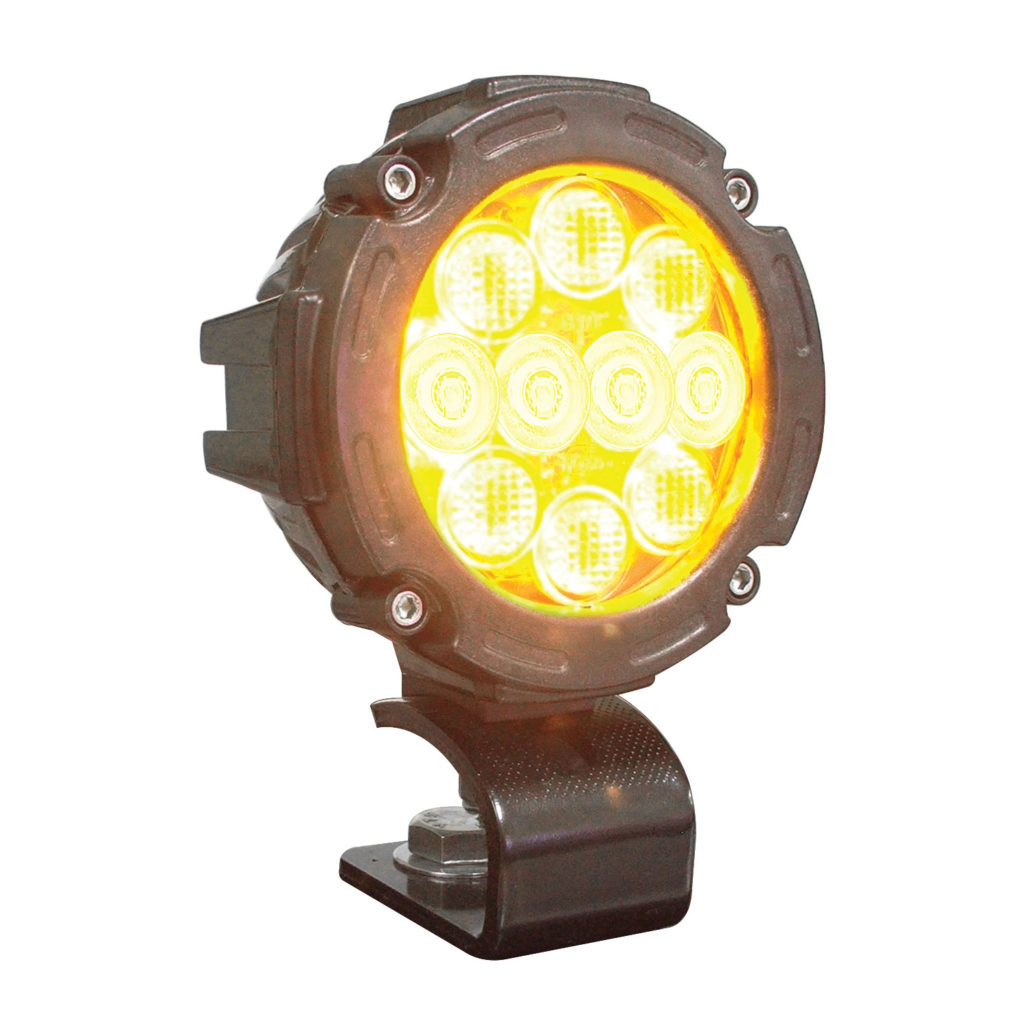

The XWL-800 series LED flashing amber warning lights deliver 2500 lumens of illumination. They are dual function lights, featuring both work light function and flashing amber function. These lights are built to withstand tough working environments and feature four attachment points, also known as the “4 Lives in 1” mount system. If one attachment point fails due to a collision, rotate to the next channel point and re-mount the light. One of the most versatile work lights on the market.
Hamsar XWL-800 Series LED Flashing Amber Warning Light
Price:
Quick Links: Features / Benefits | Product Specifications | SKUs / Accessories |
Features / Benefits
- 2500 lumens
- Dual function light – work light and flashing amber functions: - 1) Wired to two switches - 2) One switch controls the steady white work light function - 3) One switch controls the flashing amber function (the amber light does not function at steady, only flashing) - 4) They can operate separately or together
- Die cast aluminum housing, polycarbonate lens and high impact bezel – virtually unbreakable
- IP68 & IP69K – will withstand dust, dirt and sand, and is resistant to submersion up to a maximum depth of 1.5m underwater for up to thirty minutes

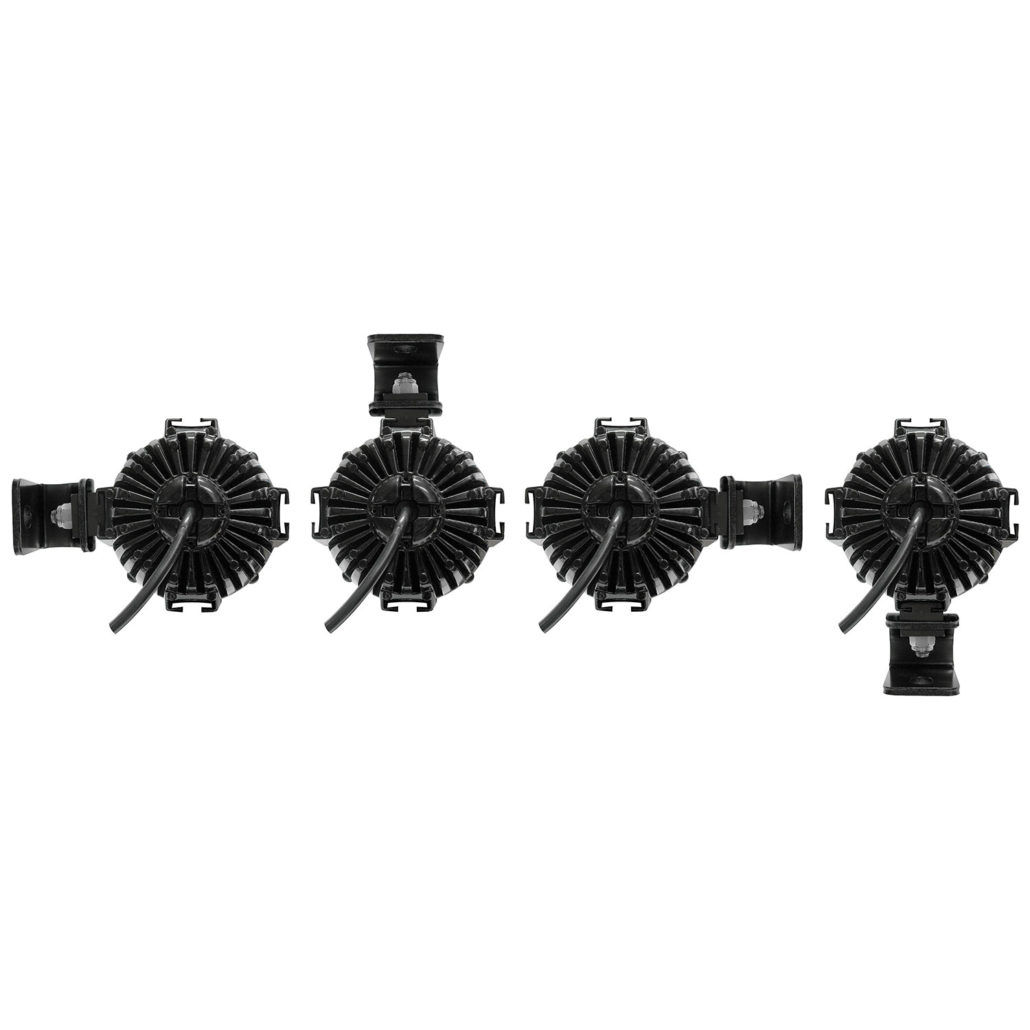

- 4 attachment points – if one attachment point fails due to a collision, rotate to the next channel point and re-mount the light
- Low current draw – energy efficient, save on fuel costs as it consumes less energy (22W)
- Constant current circuit draw – light does not dim even if voltage fluctuates
- 4 beam patterns - spot, flood, medium flood and hybrid – get light where it’s needed for the job
- 50,000+ hours LED service life and 5 year warranty

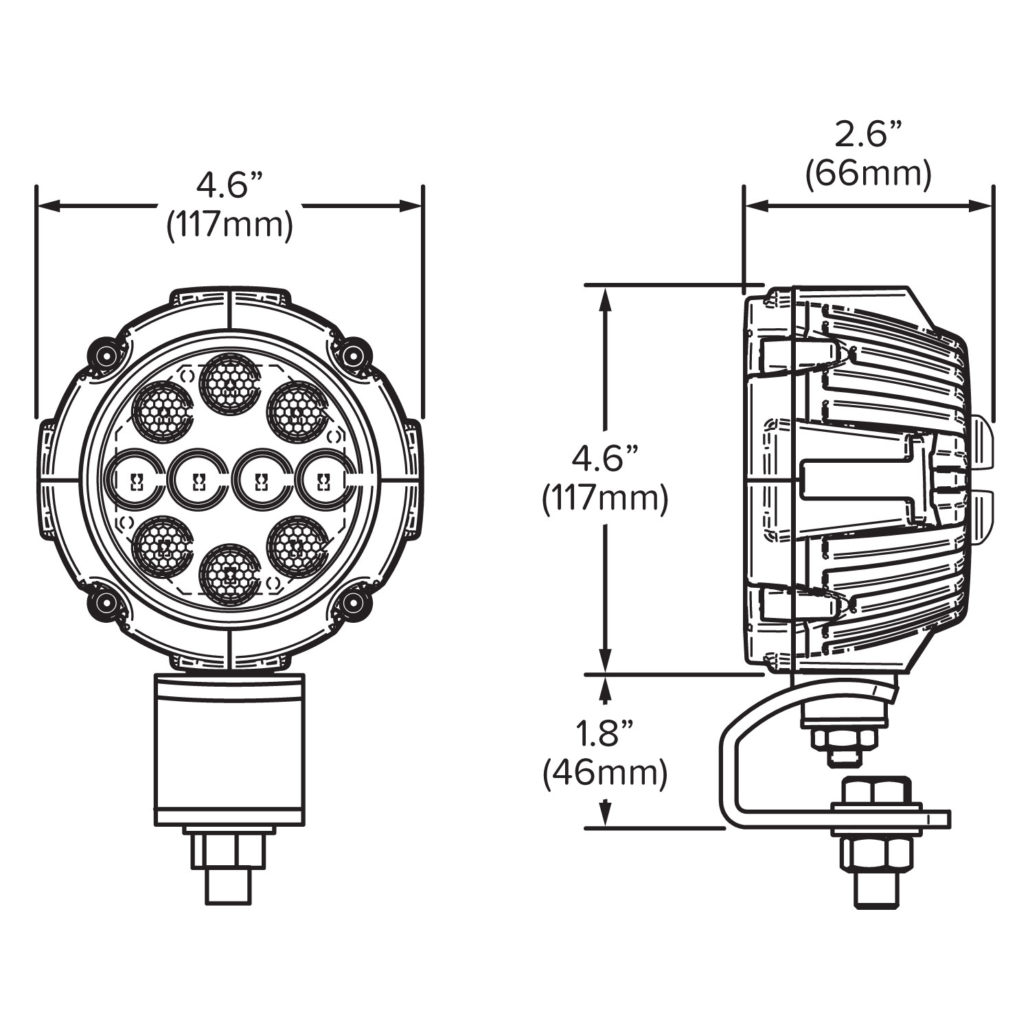

Product Specifications
- Operating Voltage 12 – 24Vdc
- Operating Current Work: 1.8A @ 12Vdc - 0.9A @ 24Vdc - Amber: 0.8A @ 12Vdc - 0.4A @ 24Vdc - Both: 2.6A @ 12Vdc - 1.3A @ 24Vdc
- Power Consumption Work: 22W - Amber: 10W - Both: 32W
- Temperature Range -40°C to +80°C
- Ingress Protection IP68 & IP69K
- Weight 2.2lbs (1.0kg)
- Housing Die Cast Aluminum – Black E-Coat
- Lens Automotive Optical Grade Hard-Coated Polycarbonate
- Connection 6” Wire
- Polarity Reverse Voltage Protected
- Vibration Resistance 10-500Hz @ 5Grms
- Mounting C-Bracket
- EMC Rated EMC EN 13309: 2010
SKUs / Accessories
81561 - Spot - 2500 Lumens - 12 - 24 Vdc
81562 - Wide Flood - 2500 Lumens - 12 - 24 Vdc
81563 - Medium Flood - 2500 Lumens - 12 - 24 Vdc
81564 - Hybrid - 2500 Lumens - 12 - 24 Vdc

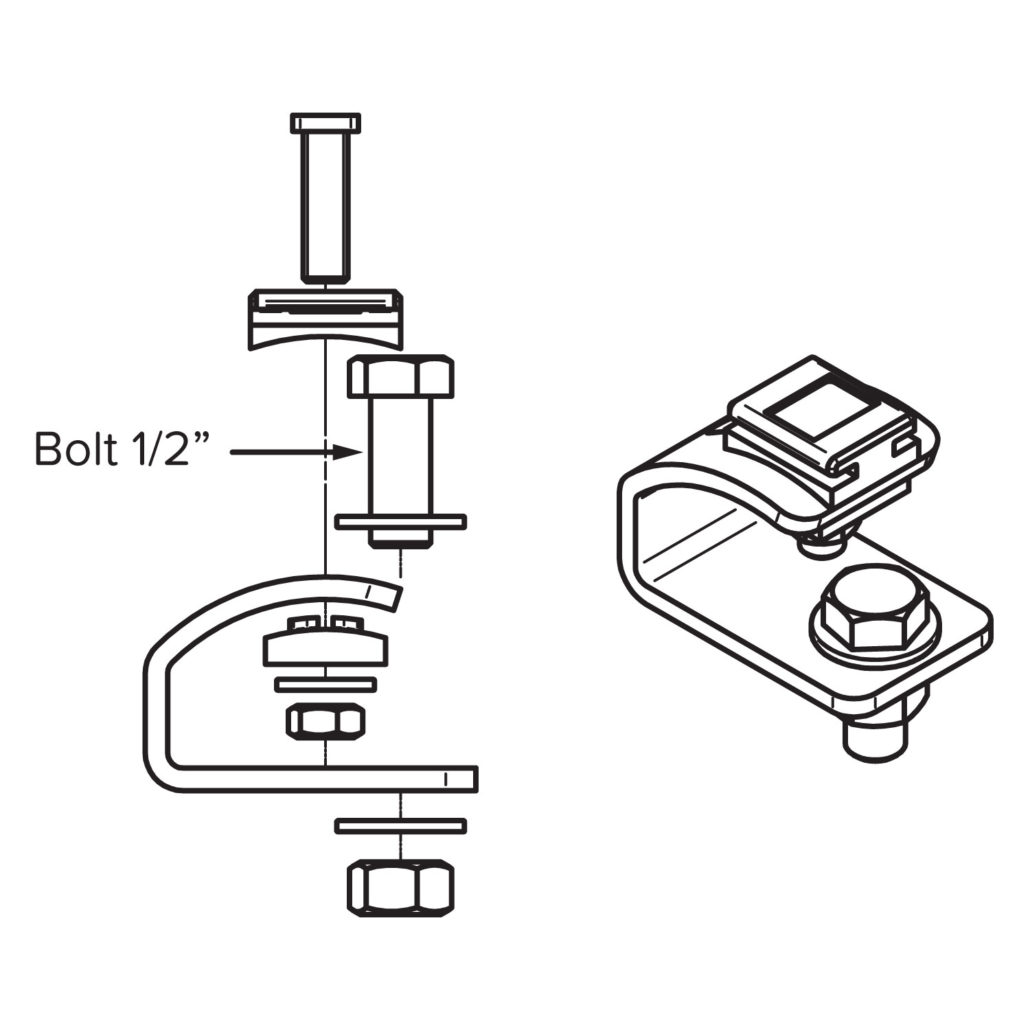

HW02A - Accessories - Hardware Kit - C-Bracket
98195 - Accessories - Easy Grip Handle - Black
