The XWL-800 series work lights deliver 2500 lumens of illumination and feature a soft start function that reduces the “in rush current”, improving electronic component life and easing the load on existing wiring and battery. These lights are built to withstand tough working environments and feature four attachment points, also known as the “4 Lives in 1” mount system. If one attachment point fails due to a collision, rotate to the next channel point and re-mount the light. One of the most versatile work lights on the market.

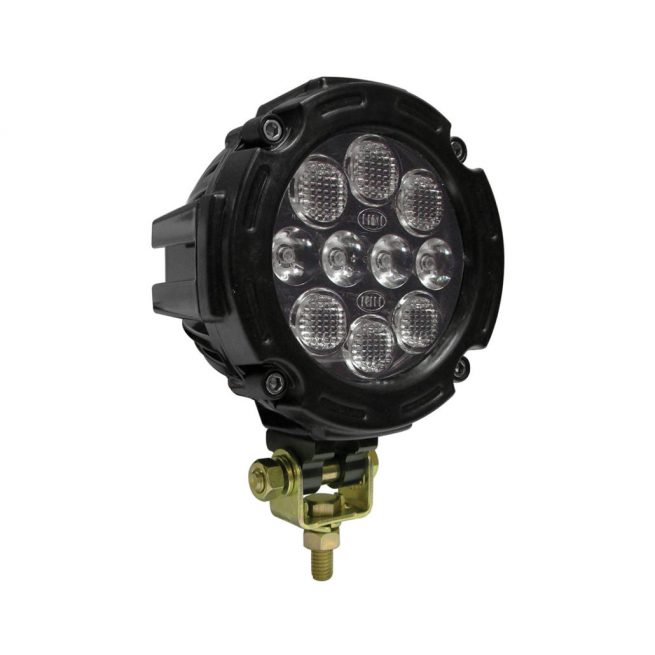

Hamsar XWL-800 Series Work Light - 10 LED - Soft Start
Price:
Quick Links: Features / Benefits | Product Specifications | SKUs / Accessories |
Features / Benefits

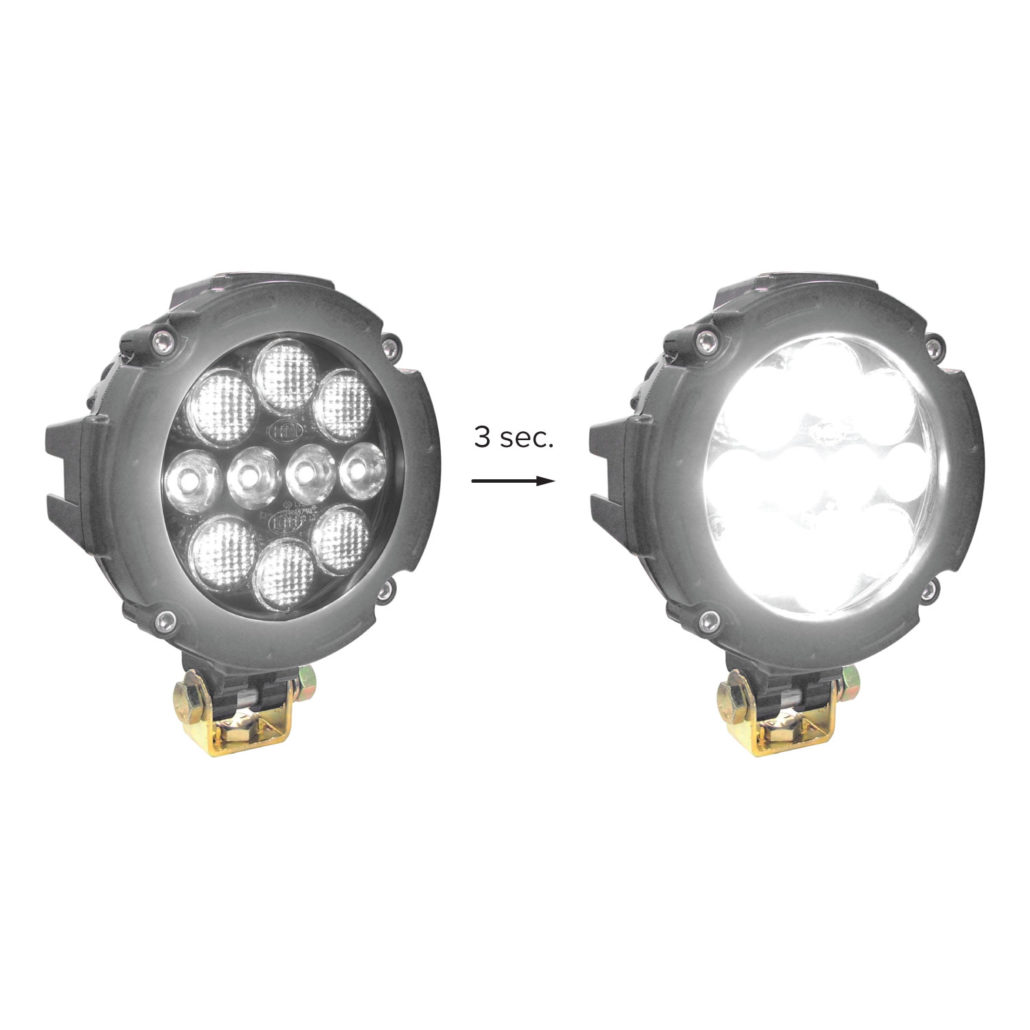

- Soft start function – reduces the “in rush current”, improving electronic component life and easing the load on existing wiring and battery
- 2500 lumens
- Die cast aluminum housing, polycarbonate lens and high impact bezel – virtually unbreakable
- IP68 & IP69K – will withstand dust, dirt and sand, and is resistant to submersion up to a maximum depth of 1.5m underwater for up to thirty minutes

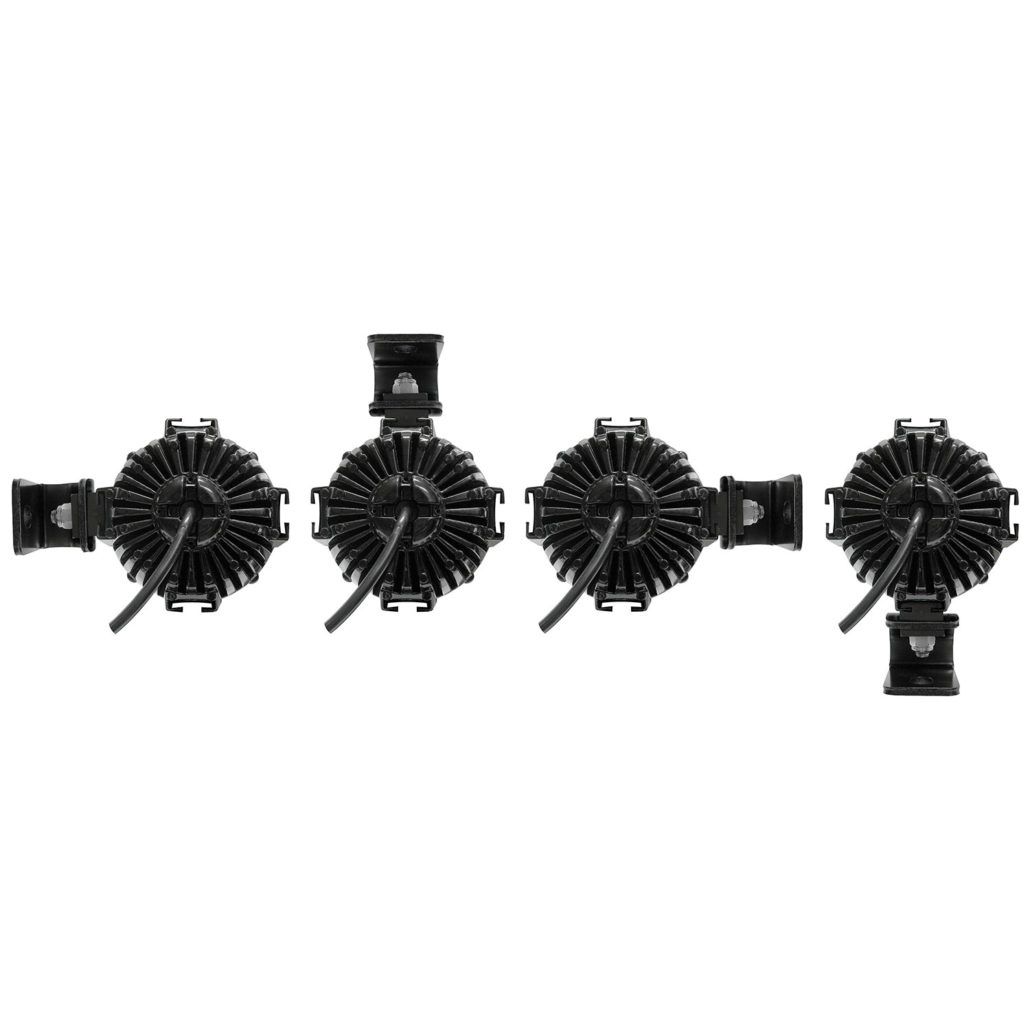

- 4 attachment points – if one attachment point fails due to a collision, rotate to the next channel point and re-mount the light
- Low current draw – energy efficient, save on fuel costs as it consumes less energy (22W)
- Constant current circuit draw – light does not dim even if voltage fluctuates
- 4 beam patterns – get light where it’s needed for the job
- 50,000+ hours LED service life and 5 year warranty
Product Specifications
- Operating Voltage 12 – 24Vdc
- Operating Current 1.8A @ 12Vdc | 0.9A @ 24Vdc
- Power Consumption 22W
- Temperature Range -40°C to +80°C
- Ingress Protection IP68 & IP69K
- Weight 2.2lbs (1.0kg)
- Housing Die Cast Aluminum Alloy A380 | Black E-Coat
- Lens Automotive Optical Grade Hard-Coated Polycarbonate
- Connection 6” Wire
- Polarity Reverse Voltage Protected
- Vibration Resistance 10-500Hz @ 5Grms

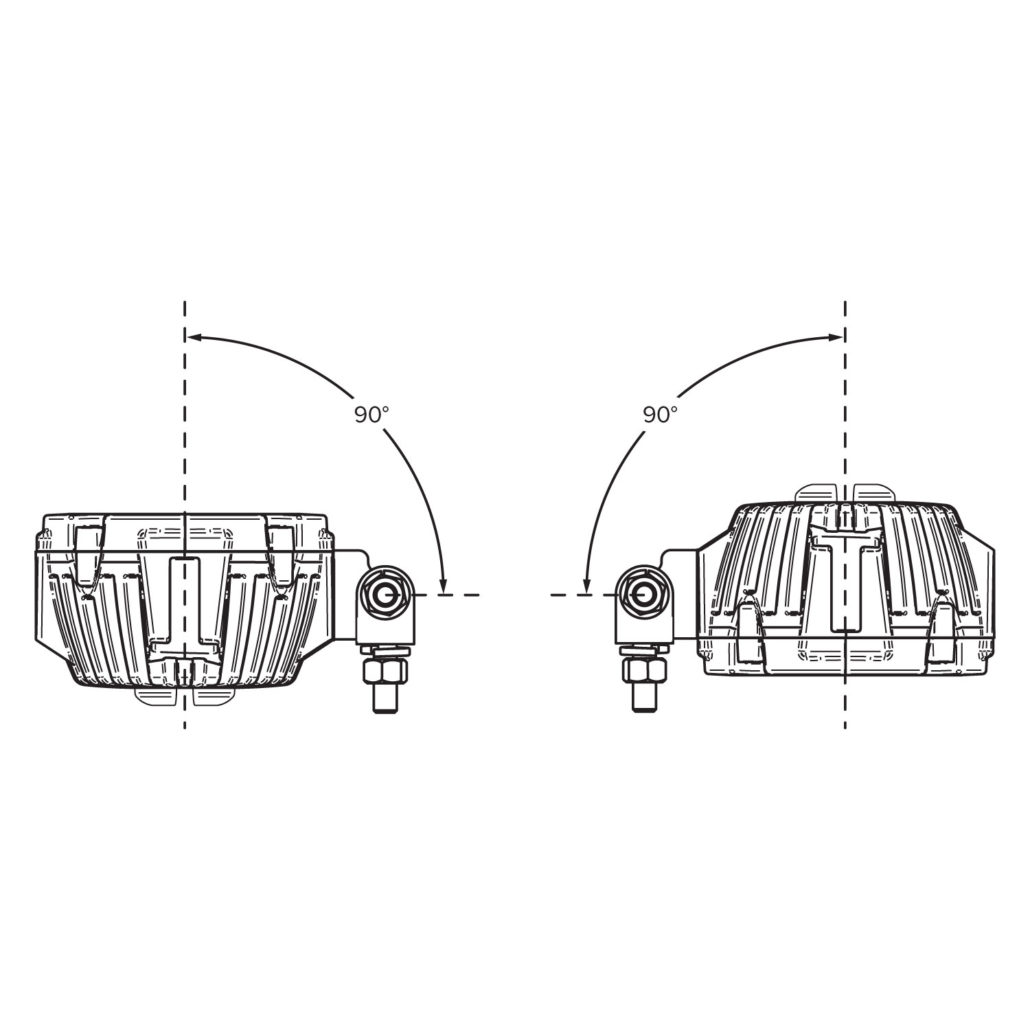

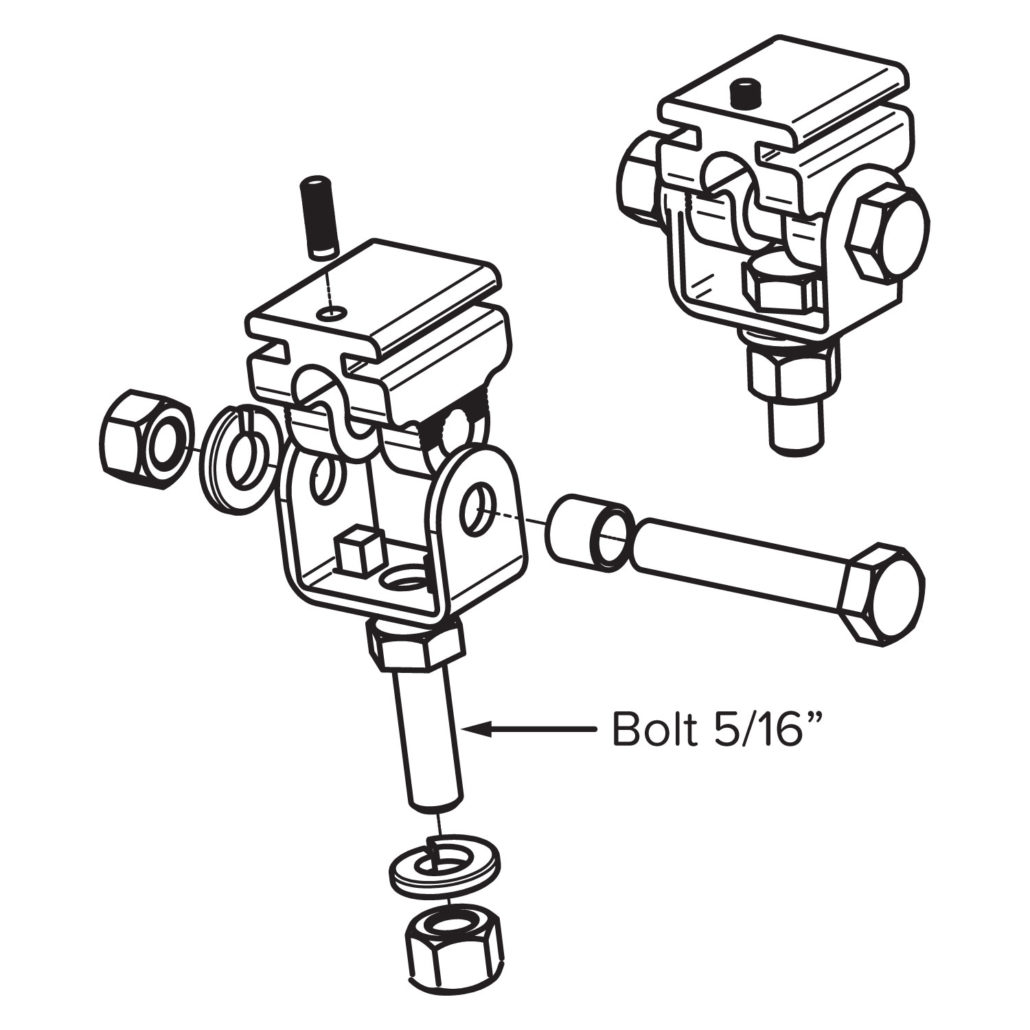

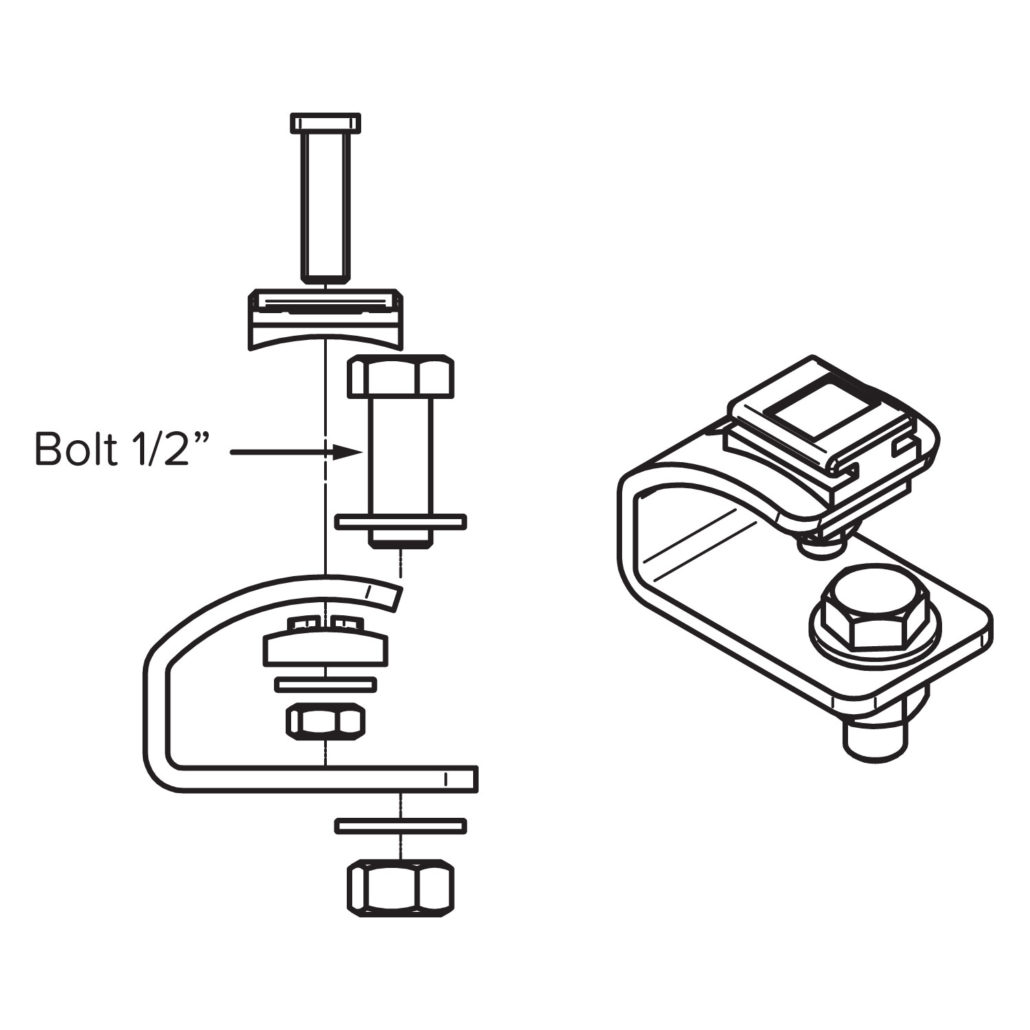

- Mounting C-Bracket (Powder Coated Steel) or Swivel Bracket (Zinc Dichromate Plating)
- EMC Rated EMC EN 13309: 2010
SKUs / Accessories
81901 - Spot - 2500 Lumens - 12 - 24 Vdc
81902 - Wide Flood - 2500 Lumens - 12 - 24 Vdc
81903 - Medium Flood - 2500 Lumens - 12 - 24 Vdc
81904 - Hybrid - 2500 Lumens - 12 - 24 Vdc
81911 - Swivel Bracket - Spot - 2500 Lumens - 12 - 24 Vdc
81912 - Swivel Bracket - Wide Flood - 2500 Lumens - 12 - 24 Vdc
81913 - Swivel Bracket - Medium Flood - 2500 Lumens - 12 - 24 Vdc
81914 - Swivel Bracket - Hybrid - 2500 Lumens - 12 - 24 Vdc
HW02A - Accessories - Hardware Kit - C-Bracket
98189 - Accessories - Hardware Kit - Swivel Bracket
98195 - Accessories - Easy Grip Handle - Black
