The XWL-810 Select series compact work lights deliver 1500 lumens of illumination. These lights are built to withstand tough working environments and feature two attachment points, also known as the “2 Lives in 1” mount system. If one attachment point fails due to a collision, rotate to the next channel point and re-mount the light. One of the most versatile work lights on the market.

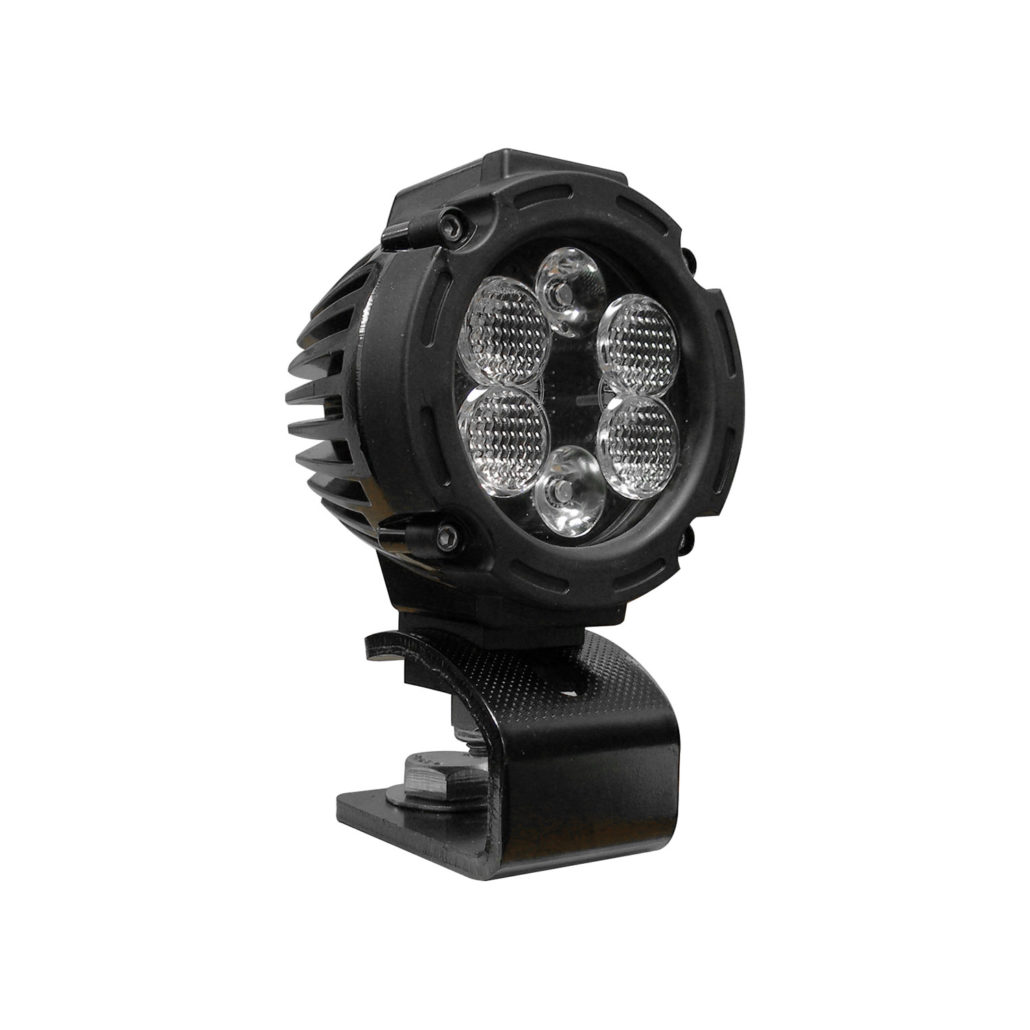

Hamsar XWL-810 Series Compact Work Light - 6 LED
Price:
Quick Links: Features / Benefits | Product Specifications | SKUs / Accessories |
Features / Benefits
- 1500 lumens

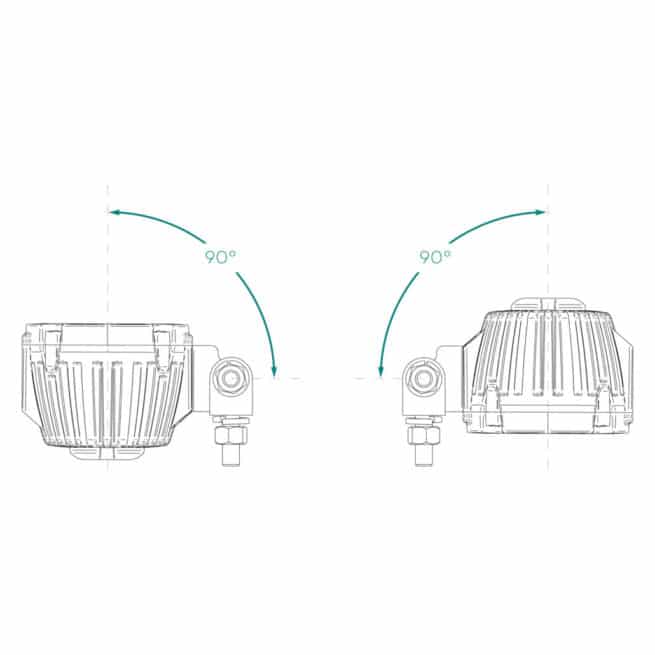

- "2 Lives in 1" Mount System - If a mounting channel is damaged, move bracket to next channel and re-mount the light
- Die cast aluminum housing, polycarbonate lens and high impact bezel – virtually unbreakable
- IP68 & IP69K – will withstand dust, dirt, salt spray, and is resistant to water submersion for up to 30 minutes
- Low noise constant current design - for EMI sensitive applications
- Improved thermal performance - uses A380 grade aluminum
- 4 beam patterns – get light where it’s needed for the job
- 50,000+ hours LED service life and 5 year warranty
Product Specifications
- Raw Lumens 1770
- Effective Lumens 1500
- Color Temperature 6500K
- Operating Voltage 12 – 24Vdc
- Operating Current 1.2A @ 12Vdc | 0.6A @ 24Vdc
- Power Consumption 14W
- Temperature Range -40°C to +80°C
- Ingress Protection IP68 & IP69K
- Weight 1.3lbs (0.6kg)
- Housing Die Cast Aluminum Alloy A380 | Black E-Coat
- Lens Automotive Optical Grade Hard-Coated Polycarbonate
- Connection 6” Wire Leads
- Polarity Reverse Voltage Protected
- Vibration Resistance 10-500Hz @ 5Grms
- EMC Rated EN ISO 13766-1:2018
- Mounting C-Bracket (Powder Coated Steel) or Swivel Bracket (Zinc Dichromate Plating)
SKUs / Accessories
81285 - C-Bracket - Spot - 1500 Lumens - 12 - 24 Vdc
81286 - C-Bracket - Wide Flood - 1500 Lumens - 12 - 24 Vdc
81287 - C-Bracket - Medium Flood - 1500 Lumens - 12 - 24 Vdc
81288 - C-Bracket - Hybrid - 1500 Lumens - 12 - 24 Vdc
81275 - Swivel Bracket - Spot - 1500 Lumens - 12 - 24 Vdc
81276 - Swivel Bracket - Wide Flood - 1500 Lumens - 12 - 24 Vdc
81277 - Swivel Bracket - Medium Flood - 1500 Lumens - 12 - 24 Vdc
81278 - Swivel Bracket - Hybrid - 1500 Lumens - 12 - 24 Vdc
HW02A - Accessories - Hardware Kit - C-Bracket
98189 - Accessories - Hardware Kit - Swivel Bracket
98195 - Accessories - Easy Grip Handle - Black
