The XWL-812 red LED safety lights deliver 150 lumens of illumination. These safety lights are visible in warehouse environments, making them ideal for forklifts, load trucks, AGVs and other industrial vehicles used in close proximity to pedestrians.

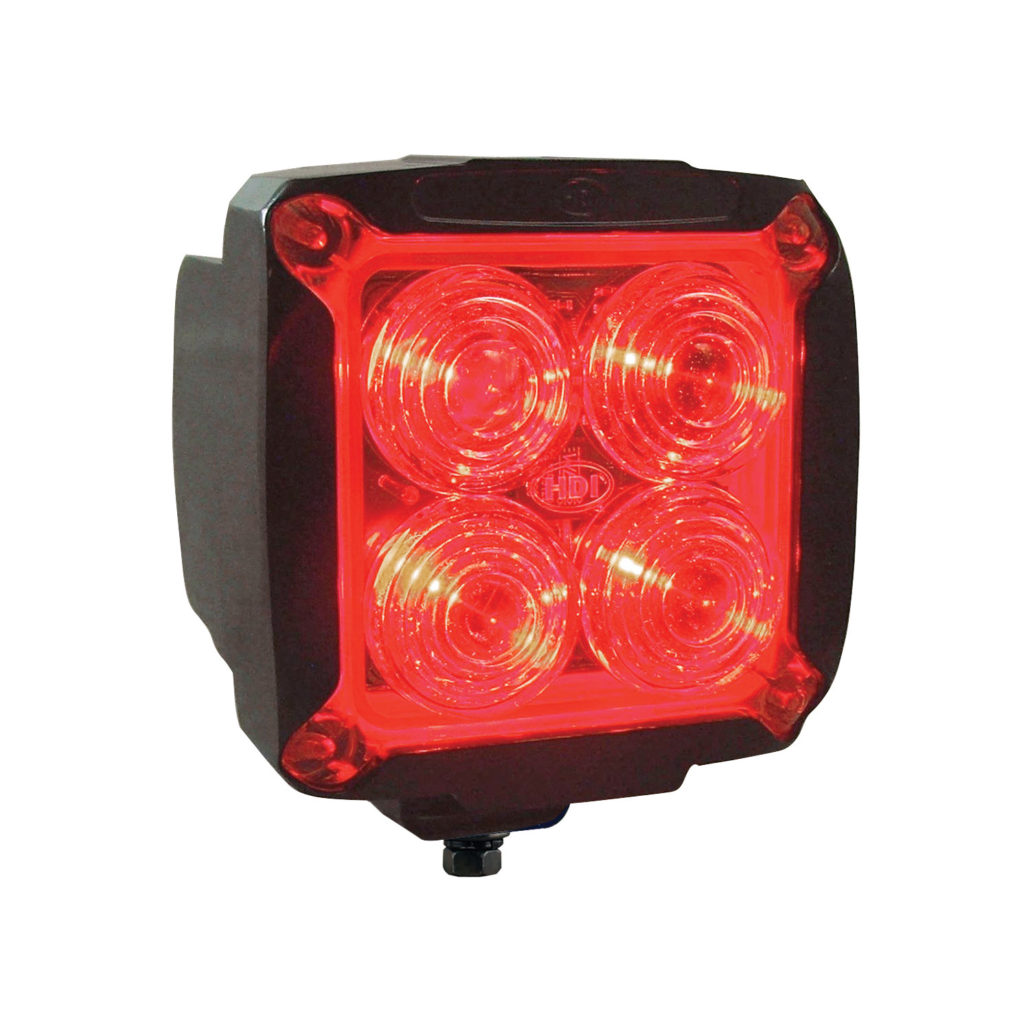

Hamsar XWL-812 Red Safety Light
Price:
Quick Links: Features / Benefits | Product Specifications | SKUs / Accessories |
Features / Benefits
- The red LED forklift light is visible in warehouse environments, making it ideal for forklifts, load trucks, AGVs and other industrial vehicles used in close proximity to pedestrians
- Beam precedes vehicle by 16 feet (5 metres) – providing visual warning to alert pedestrians of approaching machinery before it is heard or seen
- Round beam pattern – red round shape projected to the ground, alerts pedestrians of proximity to moving vehicle
- Versatile & compact design – only 4” x 4” and lightweight, mounts easily on the front or back of vehicle
- 12 – 48Vdc – can be used on heavy duty vehicles
Product Specifications
- Operating Voltage 12 – 48Vdc
- Operating Current 0.8A @ 12Vdc 0.2A @ 48Vdc
- Power Consumption 10W
- Temperature Range -40°C to +85°C
- Ingress Protection IP67 & IP69K
- Weight 1.5lbs (0.7kg)
- Housing Die Cast Aluminum – Black E-Coat
- Lens Automotive Optical Grade Hard-Coated Polycarbonate
- Connection Tyco or Deutsch
- Polarity Reverse Voltage Protected
- Vibration Resistance 10-500Hz @ 5Grms
- Mounting U-Bracket
- EMC Rated EMC EN 13309: 2010
SKUs / Accessories

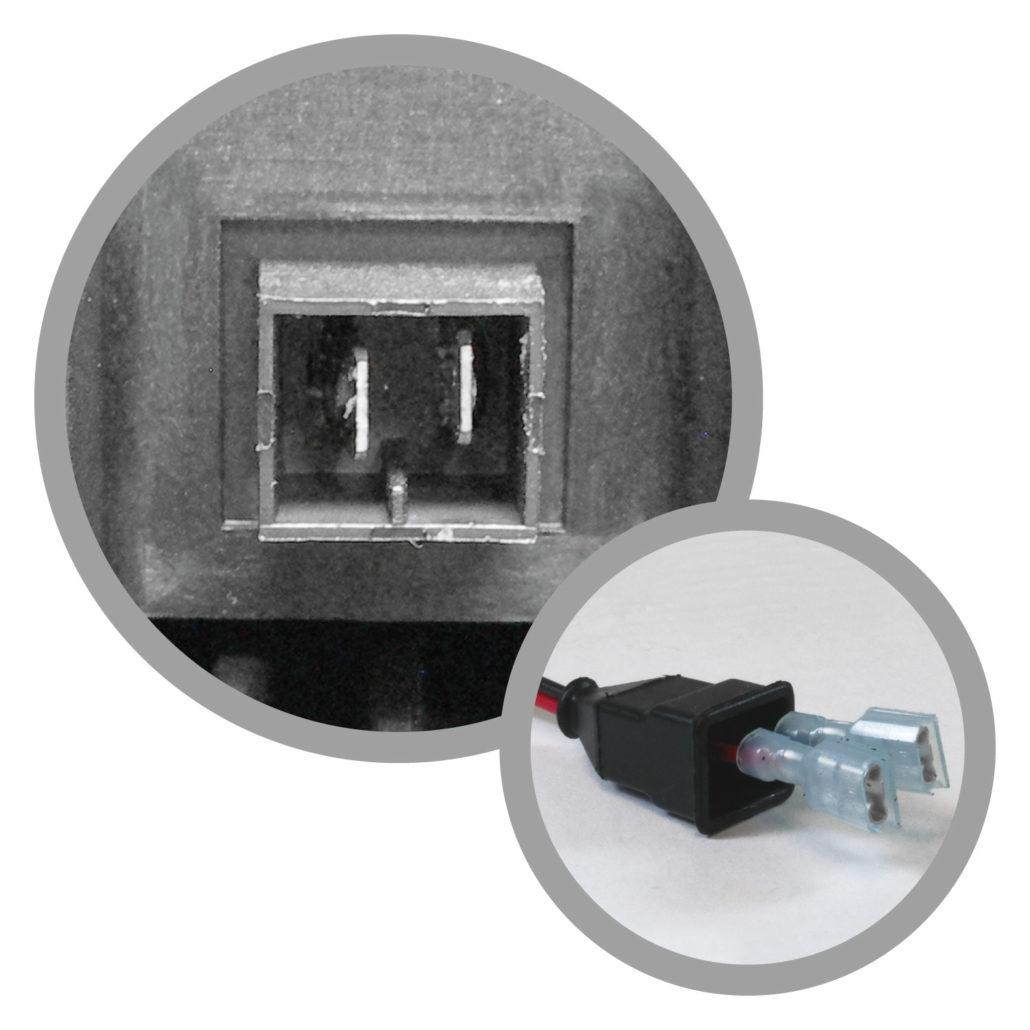

82296/B - Tyco - 150 Lumens - 12 - 24 Vdc

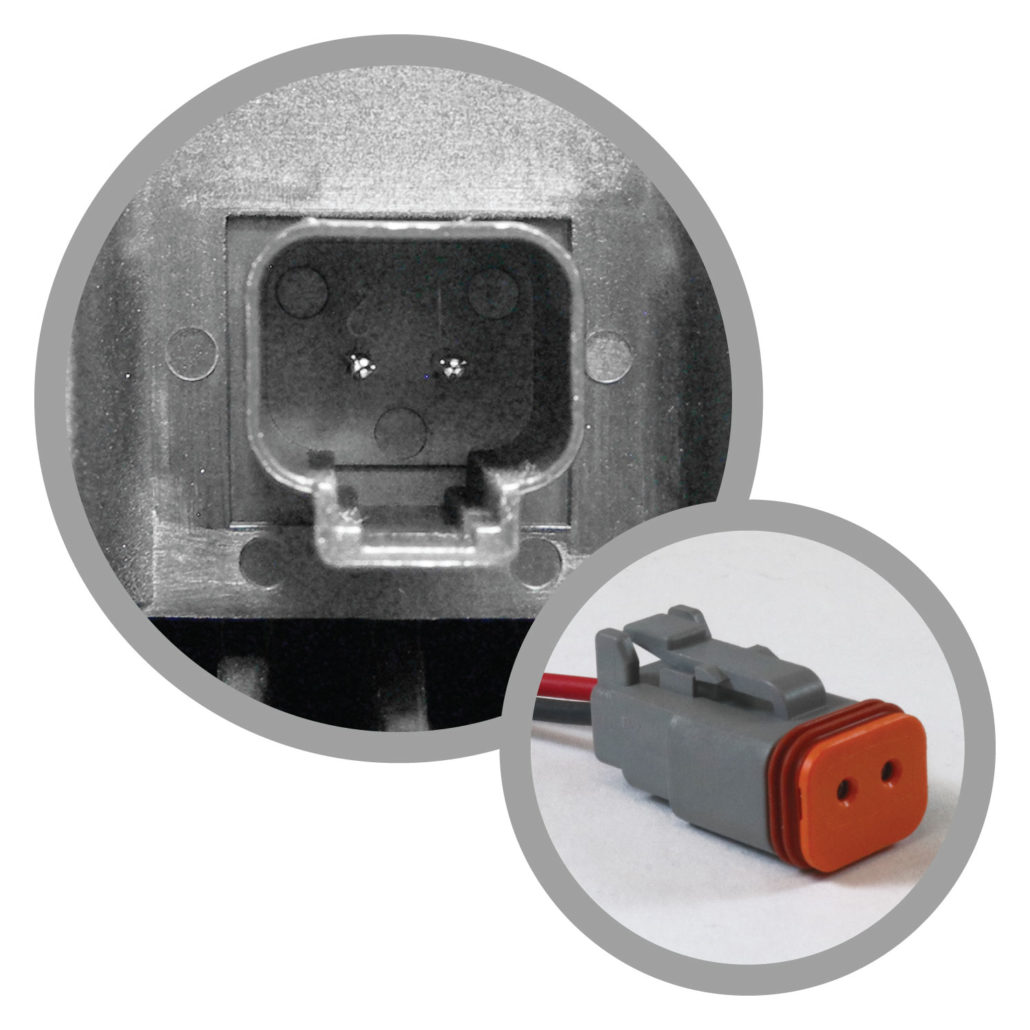

82296/C - Deutsch - 150 Lumens - 12 - 24 Vdc
