The XWL-813 5000 series work lights deliver 5000 lumens of illumination. These lights are equipped with a heavy duty mount (HDM), consisting of super tough stainless steel mounting brackets and hardware. These lights also feature built-in vibration dampeners which reduce the intensity of shock and vibration.

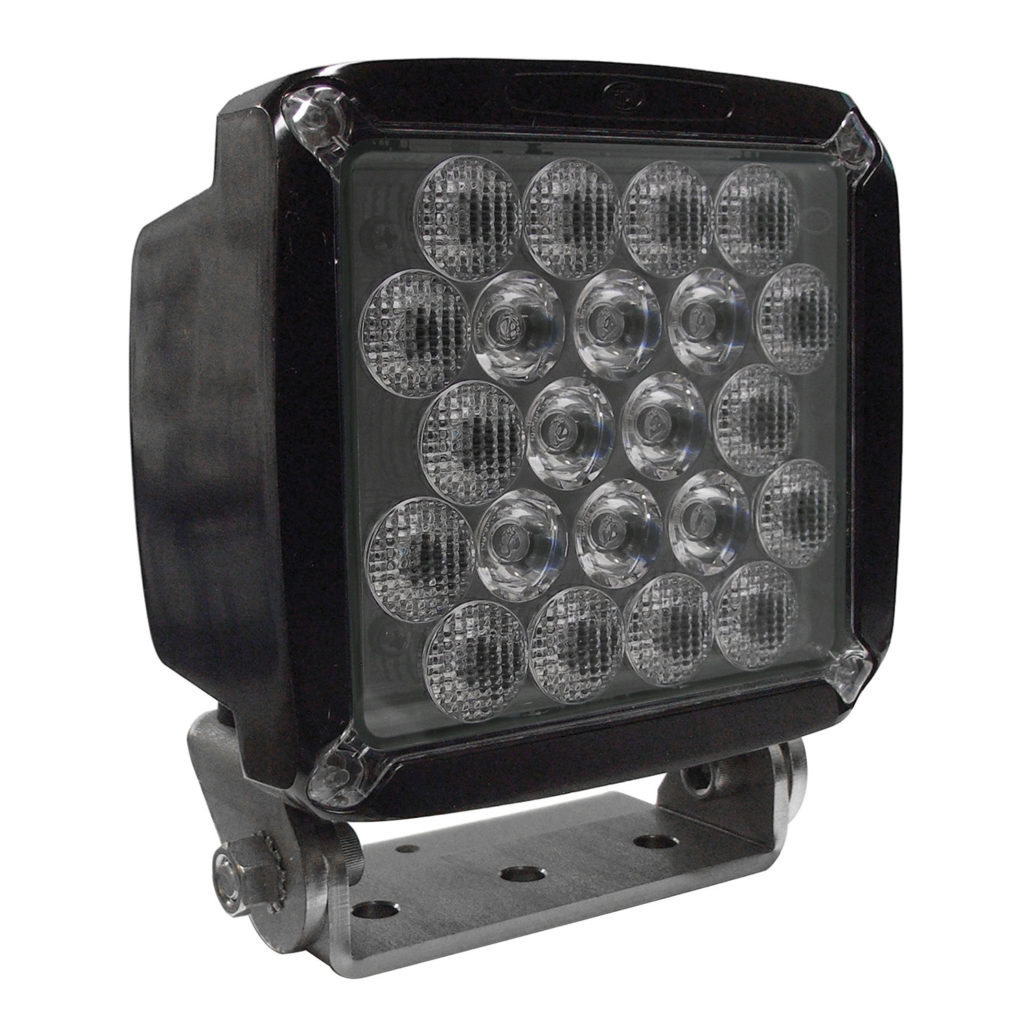

Hamsar XWL-813 5000 Series Work Light - 22 LED / Heavy Duty Mount (HDM)
Price:
Quick Links: Features / Benefits | Product Specifications | SKUs / Accessories |
Features / Benefits
- 5000 lumens
- Heavy duty mount - Die cast aluminum housing & polycarbonate lens – virtually unbreakable
- IP68 & IP69K – will withstand dust, dirt and sand, and is resistant to submersion up to a maximum depth of 1.5m underwater for up to thirty minutes
- Low current draw – energy efficient, save on fuel costs as it consumes less energy (50W)
- Constant current circuit draw – light does not dim even if voltage fluctuates
- Built-in vibration dampeners – reduce the intensity of shock and vibration
- 3 beam patterns – get light where it’s needed for the job
- 50,000+ hours LED service life and 5 year warranty
Product Specifications
- Operating Voltage 12 – 24Vdc
- Operating Current 4.2A @ 12Vdc | 2.1A @ 24Vdc
- Power Consumption 50W
- Temperature Range -40°C to +60°C
- Ingress Protection IP68 & IP69K
- Weight 3.5lbs (1.6kg)
- Housing Die Cast Aluminum – Black E-Coat
- Lens Automotive Optical Grade Hard-Coated Polycarbonate
- Connection Tyco or Deutsch
- Polarity Reverse Voltage Protected
- Vibration Resistance 10-500Hz @ 5Grms
- Mounting U-Bracket
- EMC Rated EMC EN 13309: 2010
SKUs / Accessories
81665 - Tyco Connector - Spot - 5000 Lumens - 12 - 24 Vdc
81666 - Tyco Connector - Medium Flood - 5000 Lumens - 12 - 24 Vdc
81667 - Tyco Connector - Hybrid - 5000 Lumens - 12 - 24 Vdc
81668 - Deutsch Connector - Spot - 5000 Lumens - 12 - 24 Vdc
81669 - Deutsch Connector - Medium Flood - 5000 Lumens - 12 - 24 Vdc
81670 - Deutsch Connector - Hybrid - 5000 Lumens - 12 - 24 Vdc
98195 - Accessories - Easy Grip Handle - Black
